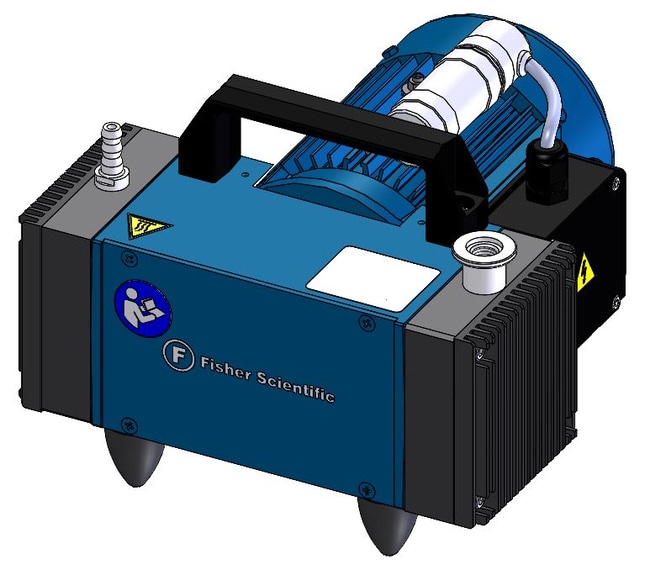

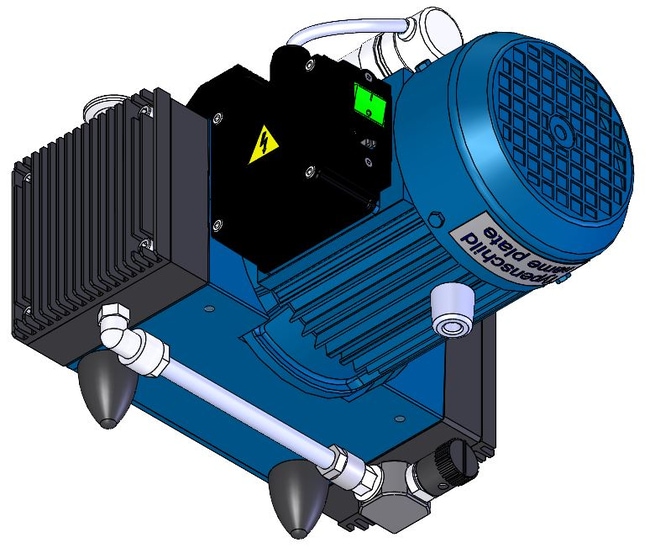

Fisherbrand™ Chemically Resistant Diaphragm Pump

Compact and portable oil free vacuum pump offering uncompromising chemical resistance. Molded diaphragms offer quiet running, minimal vibrations, and extended service intervals. Integrated gas ballast valve for pumping condensable vapors.

Brand:  Fisherbrand™ 415722-34

Product Code. 30113035

Description

• Latest generation pump ideal for evaporation applications
• Compact, portable, and lightweight design
• Pumps wide range of solvent and acid vapors
• Improved ultimate vacuum - evaporate high boiling point solvents
• Perform more work - up to 30% faster process times
• Switchable DN 16 KF flange / DN 8 hose nozzle for inlet
• Quick and easy servicing - no special tooling required
• Superior corrosion resistance with PTFE and fluoropolymer parts

Specifications

• Max. Vacuum: 5 mbar
• Shipping Weight (Metric): 13 mm
• Motor Speed: 1500 rpm
• Material: Aluminium, PTFE, Stainless Steel
• Plug Type: Schuko and UK Plug Leads
• Temperature (Metric) Max: 40°C
• Flow Rate: 2.0 to 2.2 m3/h
• Overall Height (Metric): 169 mm
• Overall Width (Metric): 230 mm
• Enclosure Rating: IP54
• No. of Stages: 2
• For Use With (Equipment): Vacuum Oven, Rotary Evaporator, Vacuum Concentrator, Filtration

• Motor Type: Single Phase AC Motor
• Includes: Mains cables EU, UK, hose nozzle 8 mm
• Certifications/Compliance: CE
• Noise Level: 44 dB (A)
• Weight (Metric): 11.3 mm
• Temperature (Metric) Min.: 10°C
• Frequency: 50/60 Hz
• Overall Length (Metric): 265 mm
• Pump Type: Chemical Resistant Diaphragm Pump
• No. of Pump Heads: 2
• Maximum Pressure: 1100 mbar
• Voltage: 220/240 V
